Induction Vaccum Sintering Furnace

Application:

Vacuum sintering refers to powder, powder billet or other forms of materials in a vacuum environment, in the appropriate temperature under the heat, by means of yard migration to achieve the connection between particles.

Send E-mail Get Price
share:

    Brief introduction:

    • Vacuum sintering refers to powder, powder billet or other forms of materials in a vacuum environment, in the appropriate temperature under the heat, by means of yard migration to achieve the connection between particles.
    • The purpose of sintering is to make porous powder compacted with certain structure and properties of the alloy.
    • Vacuum sintering furnace is mainly used for sintering of powder metallurgy products, metal injection molding products, stainless steel base, hard alloy, super alloy, high specific gravity alloy, ceramic materials, magnetic materials, rubidium, iron and boron.

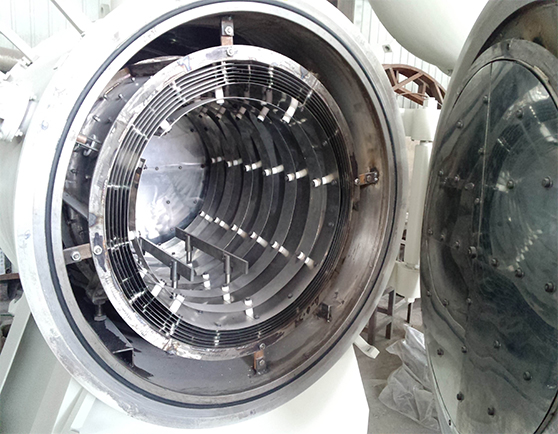

    • Vacuum induction furnace is mainly composed of furnace shell, furnace cover opening and closing device, induction coil and insulation device, central control system and electrical system.

    .

    Specification:

    Model

    Effective heating zone（ width * height

    *length,mm ）

    The highest temperature

    (℃)

    Ultimate vacuum

    （Pa）

    Temperature stability

    (℃)

    pressure rising rate（Pa/h）

    Heating power

    (KVA)
    WFVS225 200*200*500 2400 1 ±5 ≤0.67 90
    WFVS337 300*300*700 2400 1 ±5 ≤0.67 120
    WFVS449 400*400*900 2400 1 ±5 ≤0.67 150
    WFVS6612 600*600*1200 2400 1 ±5 ≤0.67 210
    WFVS6618 600*600*1800 2400 1 ±5 ≤0.67 300
    WFVS6624 600*600*2400 2400 1 ±5 ≤0.67 360
    WFVS8830 800*800*3000 2400 1 ±5 ≤0.67 540
    WFVS8840 800*800*4000 2400 1 ±5 ≤0.67 720
